Discussion Starter · #1 ·
Hey Guys,

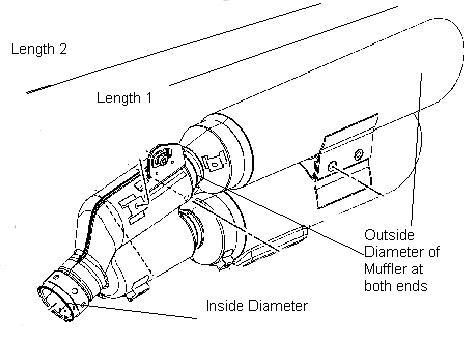

Could someone give me the exhaust (muffler) dimensions as follows:

Stock Muffler length 1:
Stock Muffler length 2:
Stock Muffler outside diameter large:
Stock Muffler outside diameter small:
Stock Muffler inlet diameter (where it connects to the EXUP manifold):



I want to purchase some exhaust parts while I'm in the US (nothing available at home).

Cheers,

Scooter


·
Registered
Joined
·
123 Posts
Discussion Starter · #2 ·
Hey Guys,

Someone must have this info! I'm leaving the US soon and need to buy some exhaust components before I leave.

Any help appreciated!

Cheers, Scooter.


·
Registered
Joined
·
148 Posts
inlet at exup 2.390"

exhaust outer diameter 4.135" both ends

inlet bettween cat's and Muffler is 2.26"

overall length is 29" muffler is 19" top 15" Bottom

cat's are 10" in length


·
Registered
Joined
·
640 Posts
When I put on the SuperTrapp muffler I got one that was 2 1/4" inside diameter to slip on where the exup is.


·
Registered
Joined
·
123 Posts
Discussion Starter · #5 ·
Sleepercell, Oops,

Thanks for the info, greatly appreciated ;D. I purchased a Super Trapp (5 inch universal) and an adaptor today.

Looking forward to trying them with Patrick Hi Flo BAK and Power Commander III USB when I get home.

Oops, did you feel much difference with/without EXUP?

Cheers, Scooter
